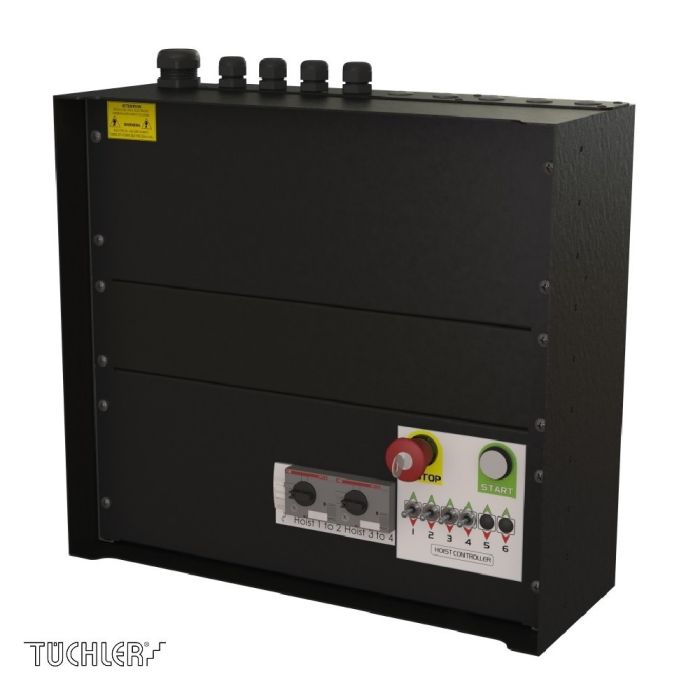

Chain Hoist Control ALTIMATE CLASSIC LOCAL, Wall, 4-Channel, LVC

Low Voltage Control
Operation: directly on the control cabinet

Supply voltage: 400-415V/3 phases/50-60 Hz
Plug type: CEE 32 Ampere, 5-pin
Local operation or remote control (15 m cable)
Chain hoist connection via terminal strip in control cabinet
Protection against phase rotation
Metal cabinet for wall mounting
One circuit breaker per group of 2 chain hoists
Maximum power per channel (kW): 20 kW, max. total power across all channels based on 32 A

Dimensions:
4-channel: Height x Width x Depth: 45.5x50x22 cm, 11 kg
